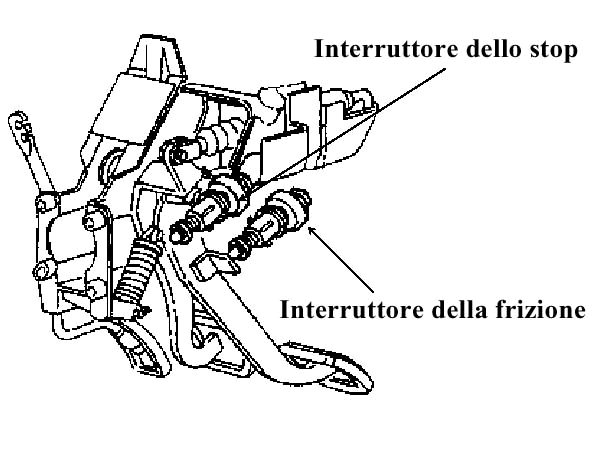

INTERRUTTORE PEDALE FRENO                                                 a



CHIAVE TER.COMP. CONTROLLI VALORI
MAR massa - 1 tensione alimentazione 10 - 15 volt
MAR massa - 2 segnale uscita pedale a riposo ( 0 volt )
pedale schiacciato
( 10 - 15 volt )
